Mobile Application

Purpose:

To enable the execution of the service process and content in a digital format.

Click on walk-through link for Preview Services: https://app.storylane.io/share/hnxm8us5n2kh

Click on walk-through link for Start Services:     https://app.storylane.io/share/ptc8g3ra6850

Click on walk-through link for Checked Out Services:     https://app.storylane.io/share/oxkg6egms82k

Process:

1. Log In

Log in using your provided username and password

2. Service List

Service list provides all the services that have not been completed for the models and roles that the person has log in can perform

Scheduled

     - Service not yet started

Stopped

     - Service stopped for what ever reason

In Progress

     - Service is in progress by someone else

Checked Out

     - Service has been checked out by someone else

3. Preview Service

Enables the user to look into the service without having to start the timer or save any details.

4. Begin Service

Begin the service to start the service.

Complete the following screens to get to the tasks.

Check off parts and tools required.

Check off any permits that maybe required within the service.

Complete the start questions every time the service is started.

5. Preparation

Check them off to ensure that they are on the job before you start.

This is designed to be prepared and not having to leave the service for either of these items.

If there is an issue with these items, provide a reason why in the dropdown list when the missing box is ticked.

Or tick all to progress to the next screen.

6. Start Questions

To be filled in at each start of the service. Regardless if it have been stopped, the new person on the job needs to answer these start questions again.

7. Tasks

Tasks are set in an order to promote an efficient flow within the stage or zone.

Content is presented in the right panel to define what is expected with the task and specific information is provided to benefit the technician assigned to complete.

Click on the image to open larger and flick to the right to see more if available.

Complete the task using the green button top right of the panel.

The user can look at previous or next tasks with freedom.

You cannot complete other tasks unless the task with the blue dot is not completed first.

If you complete a task by mistake, just click on the "Task Completed" button to undo the change.

8. Skip Tasks

Skip the next task feature enables the user to progress through the service if a task is not able to be completed.

The user can click on the skip this task button and give a reason why the task is to be skipped.

This will be recorded in ZoneMaintenance Analysis in the service impacts screen.

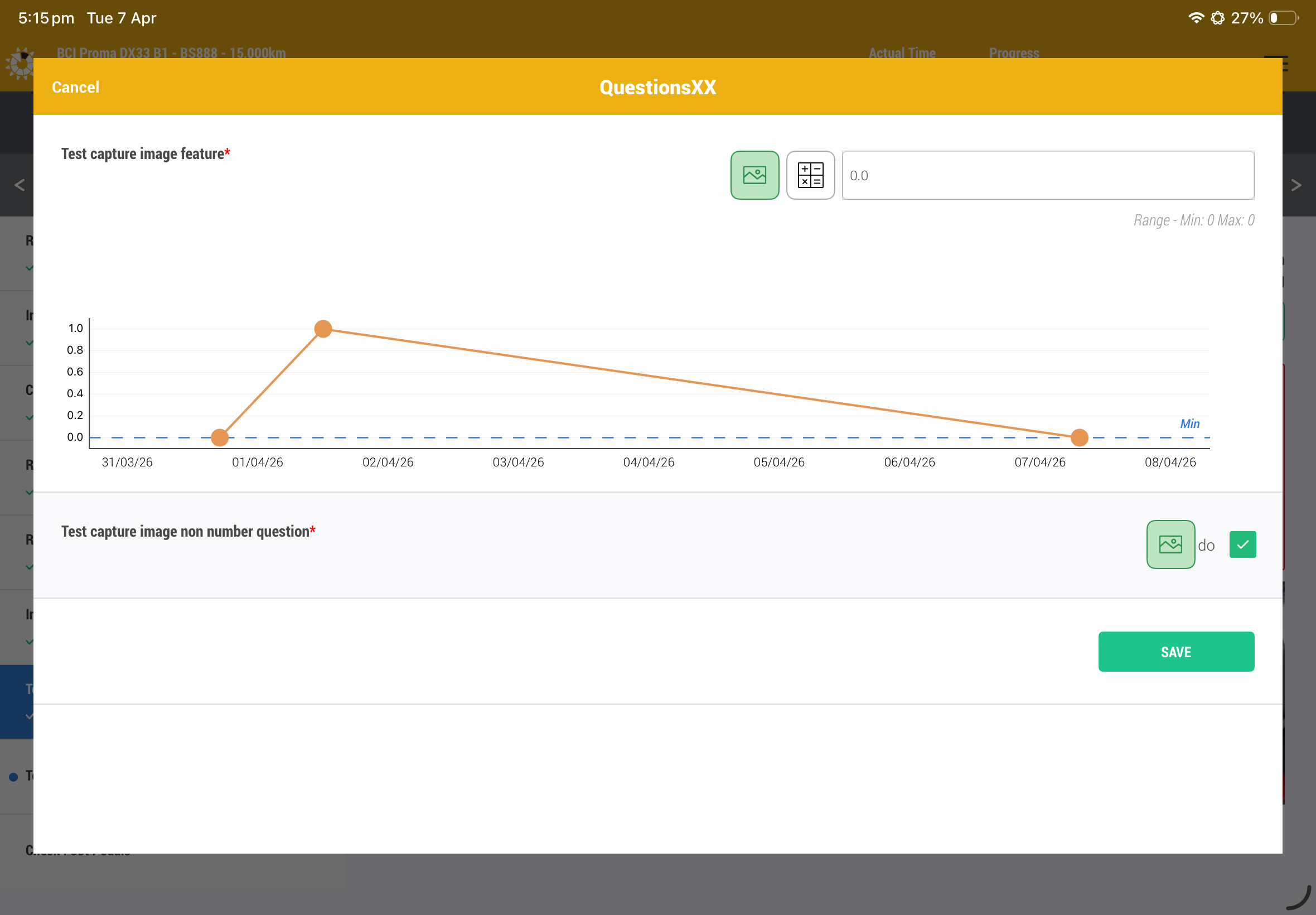

9. Documents and Questions

If the button is highlighted then the user can view a document or answer a questions.

A question could be compulsory meaning that the user needs to answer it to complete the task.

Questions are designed to determine the condition of the component by giving it a value or selecting from a dropdown list or other question formats.

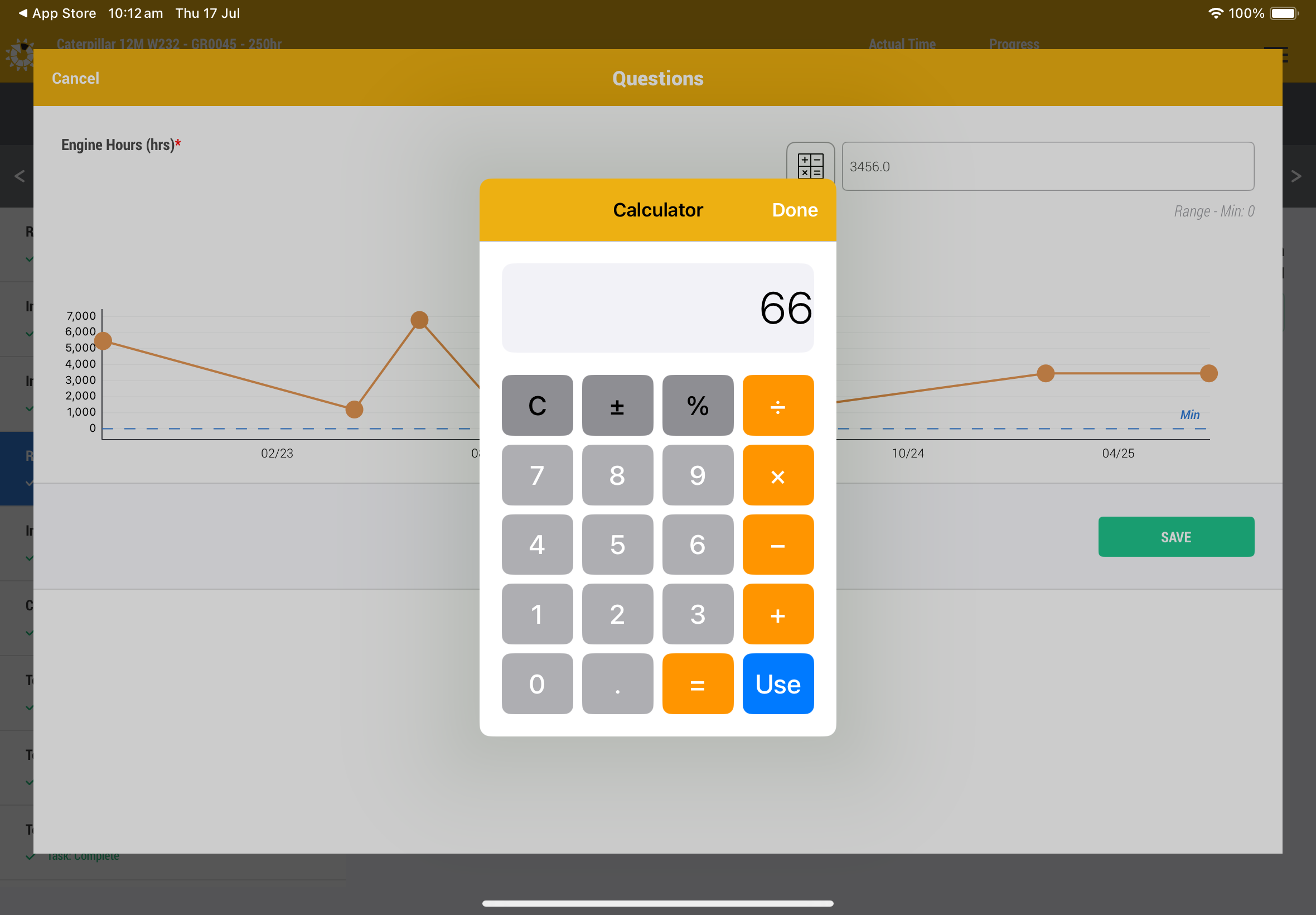

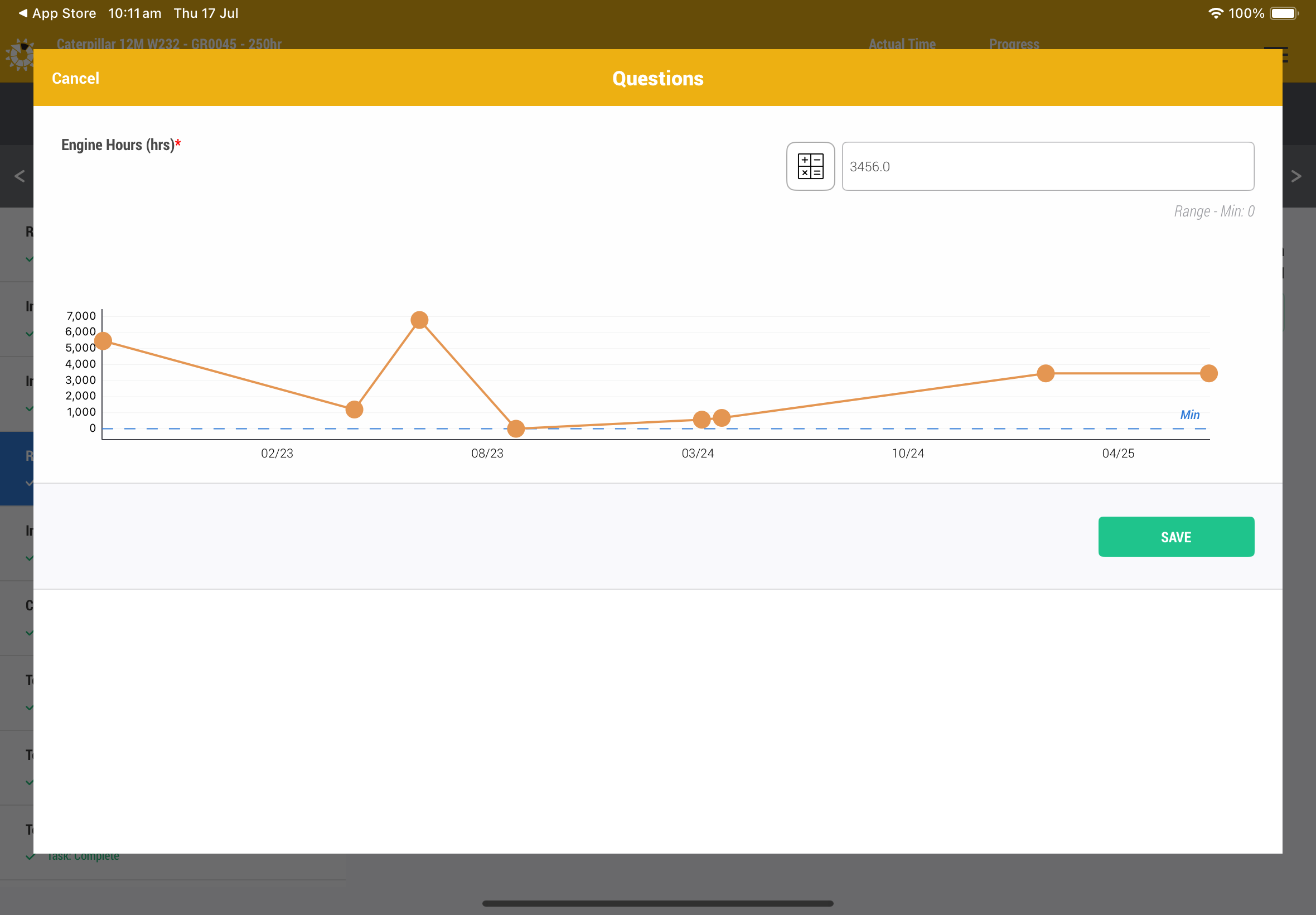

10. Condition Monitoring Questions

A question might be to provide a value that is being trended.

A minimum or maximum range is provided and a specification is listed.

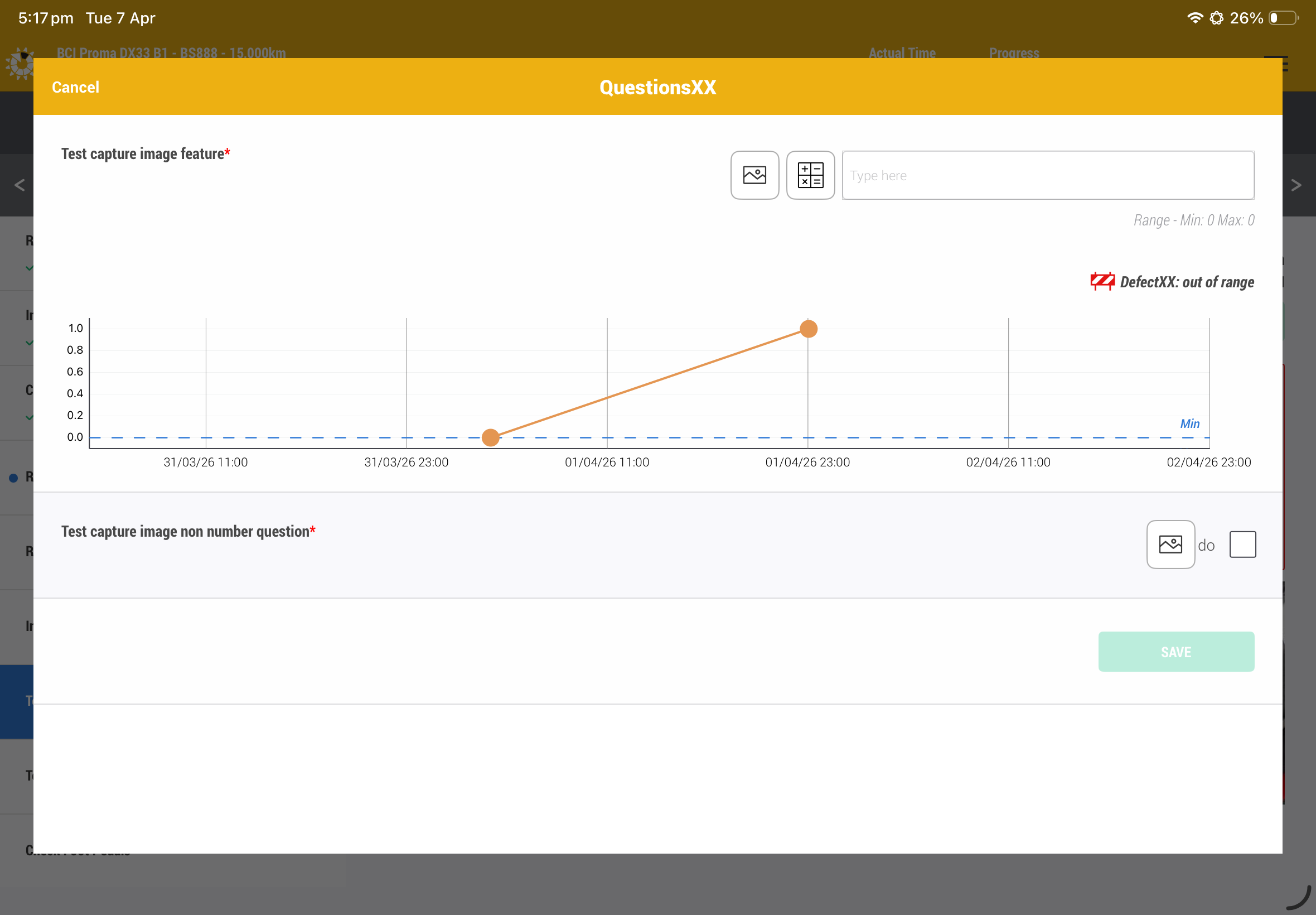

A value outside of the min/max range will trigger a defect.

If there are more than one CM question and all are out of range then a defect will be raised for each question.

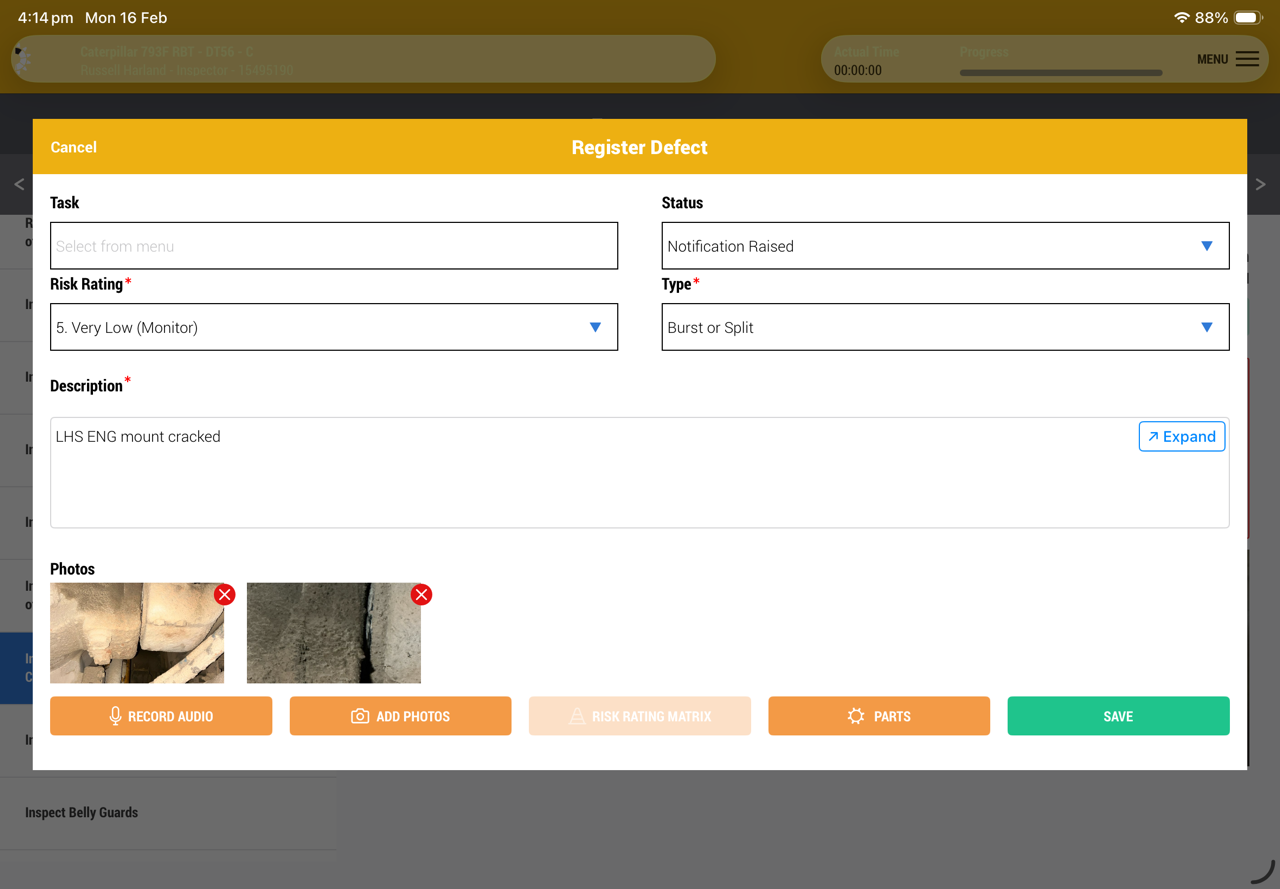

11. Defects

A defect can be raised either by

1. clicking on the Defect button on the main screen

2. answering a question that triggers the defect feature

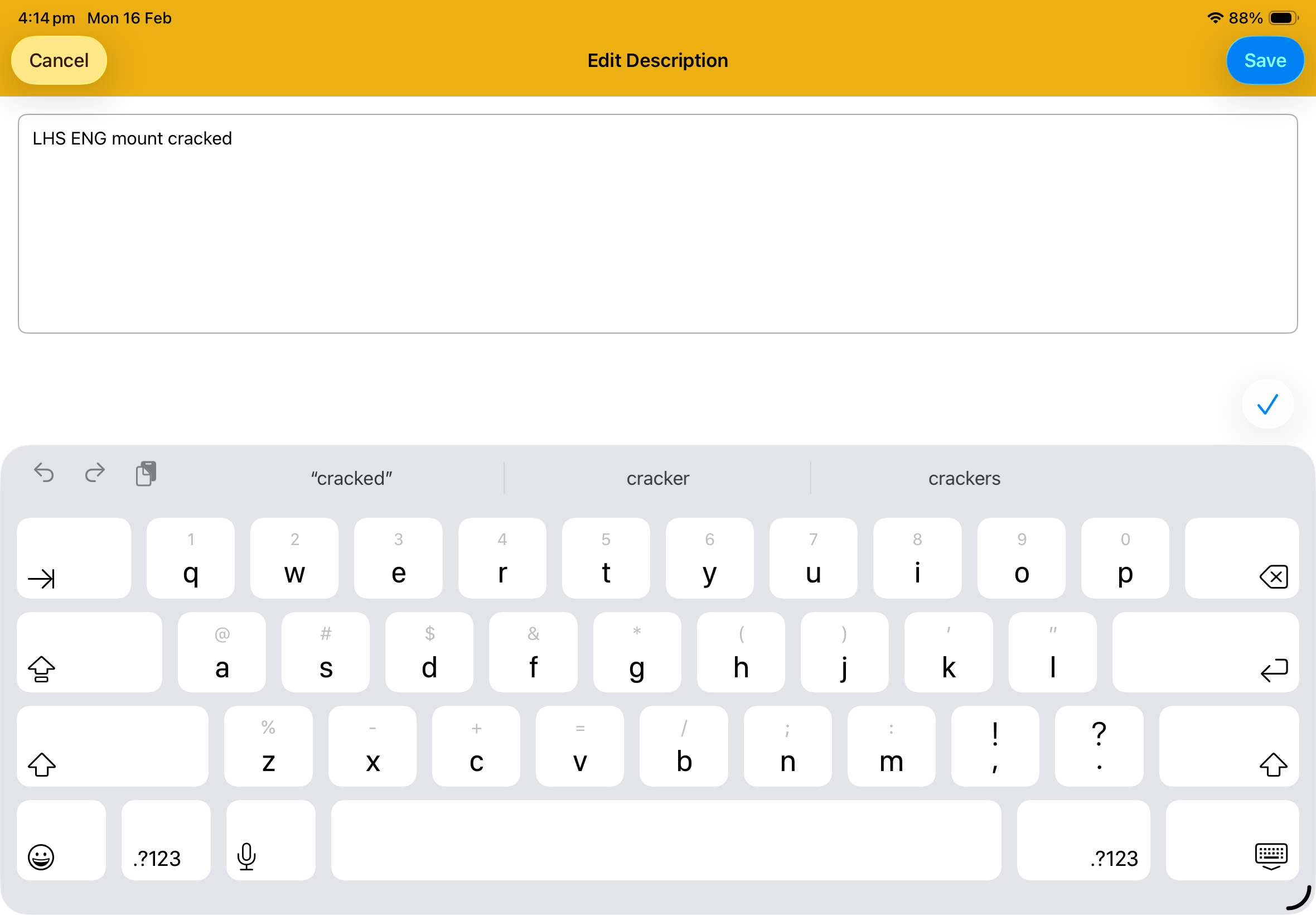

If a defect is registered then the user has to completed the fields, add further details about the defect and take images for future inspection.

A defect is raised against a task but a defect can be raised but not assigned to the task. Click on the x in the task box removes the task from the defect registered defect.

12. Existing Defects

Existing defects are defects that have been reported during the service or that were reported during previous services that are still outstanding.

This list is only for the stage or zone the user is currently in.

The user can click on these defects and change the status or risk rating. Take more images to outline the changes that has occurred.

It is important for users to change defects to completed if the defect looks to have been rectified.

13. Notes

User can leave a note to provide some information relevant to the service which is not.

     - A defect

     - A feedback

Example might be another person has been added to help the user with the service. The new person is not assigned any task but the signed on user is accountable to indicate if they have been completed. The user might like to add which tasks the new person completed for future reference.

14. Pause

User can pause the service and provide a reason.

As the service is being timed any impact that causes the user from performing his or her duties should be captured by pausing the service.

If the person is taken off the service then the service must be stopped.

15. Stop Service

Stopping a service is designed to enable the user to log off to be handed over to someone else to complete.

User is to give a reason and sign.

Prior to stopping the service the user can view recorded defects to show the supervisor or make changes prior to the sync.

Additionally, the user can stop and log out with one button. This will sync the data and log the user off with the one click.

16. Menu

Current Task - task the user to the last task completed.

Skipped Tasks - gives the user a list of the skipped tasks to be completed.

They can be completed in any order

Notice boards - information that might be useful to share with all users.

Feedback - provides the user the option to offer ideas or suggested changes to content, flow or issues.

17. Feedback

Adding feedback will help you to share your ideas on how to improve the content and process.

Assign the feedback to your supervisor so it can be actioned by the right person to make the change.

Add images as well can be very helpful.

18. Check Out/Check In Process

If a service is being performed in an area without wifi , it is important to check out the services being performed.

One or more can be checked out by the user. But this means no one else can access these services.

19. Check In

A user that has checked out a service must check the service back in when they get to wifi range.

Click on the button to check the services back in.

This gives others access to the service information or are able to start a stopped service.

If this is not followed then the user that has checked out the service will lock the service from anyone else.

This is like taking the paper based service sheet home with you.

20. In Progress

If a user does not stop a service, signs off and sync’s the service when in wifi range, the service remains in progress.

This stops anyone else from starting the service as it has been assigned to that person that has started the service.

If the person leaves site, it is like taking the service sheet with them.

The supervisor can reset the service via ZoneMaintenance Analysis but the risk is that data could be lost and the service

would need to be performed again.

21. Register Service

A service can be registered from the iPad if necessary.

The user needs the information to complete the compulsory fields to register a service.

They also need to be within wifi range to complete this process.
